Site measuring services

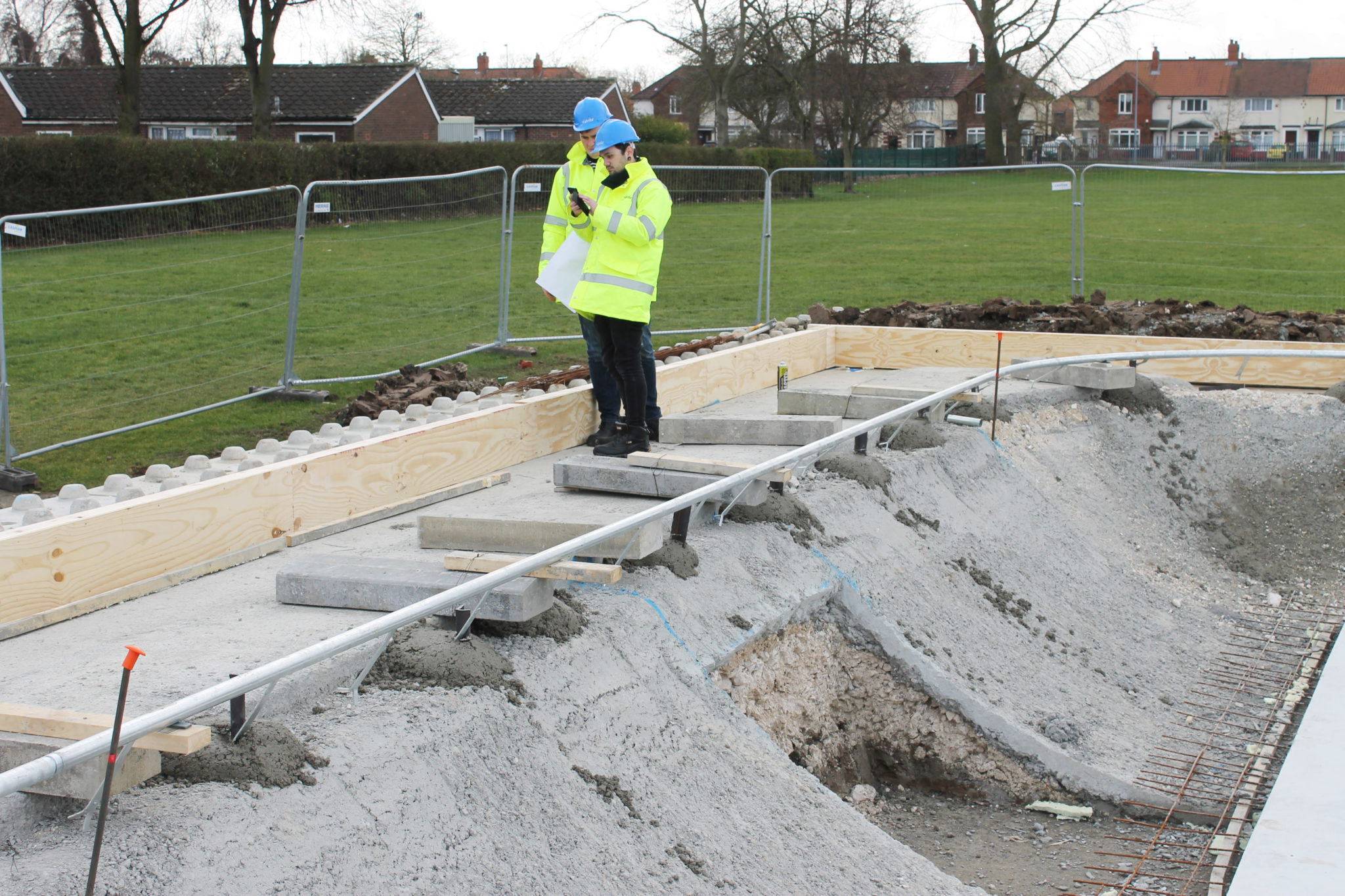

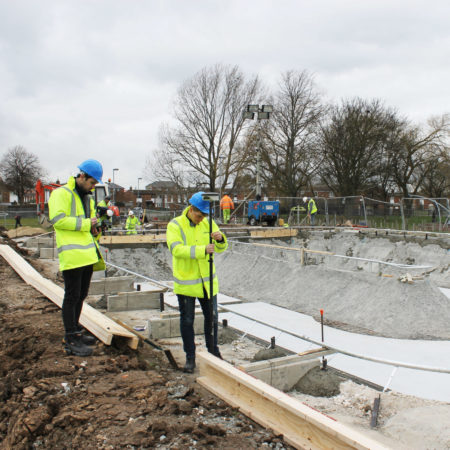

Alongside our extensive manufacturing capabilities, we also offer on-site measuring services as a service. We use the latest GPS technology in order to provide plans which will cover large areas, quickly.

Due to the restrictions of GPS, we also carry traditional and laser measuring equipment to ensure that all areas can be detailed, regardless of any near buildings, trees or other obstructions which may obscure GPS data.

Output data can be provided digitally to fit most CAD formats. We use this data ourselves to aid in the design and manufacture of bespoke, made-to-measure products.

Please get in touch below for a quote.

  • GPS measuring
  • Traditional measuring
  • Laser measuring
  • In-depth surveys for CAD Design

3D Printing rapid prototyping

With our in-house 3D printing technology, we are able to rapidly produce one-off prototypes. We can produce these models in a variety of filaments, including ABS or PLA. PLA is a biodegradable material, made from natural resources such as corn starch.

This prototyping method is highly effective in aiding in the visualisation of a product, in 3D, before committing to more time-consuming and expensive manufacturing processes.

  • One-off prototyping at a rapid pace.
  • A choice of ABS and PLA printing materials.
  • 3D visualisation of the product concepts.

Finite element analysis

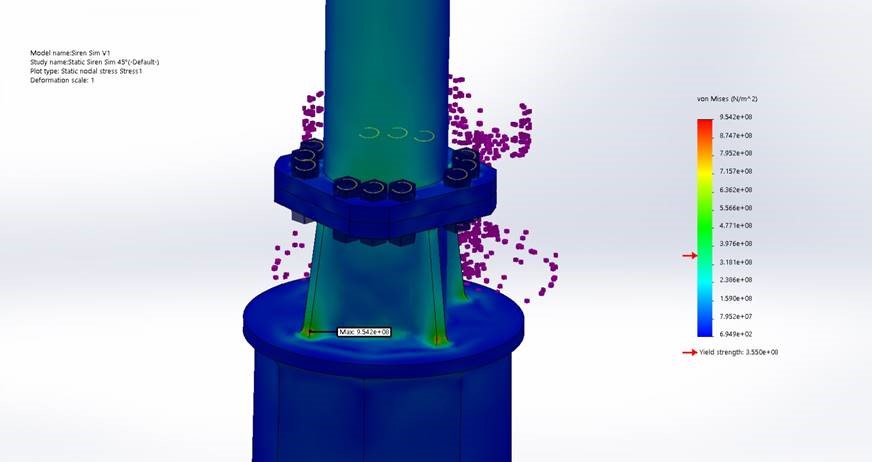

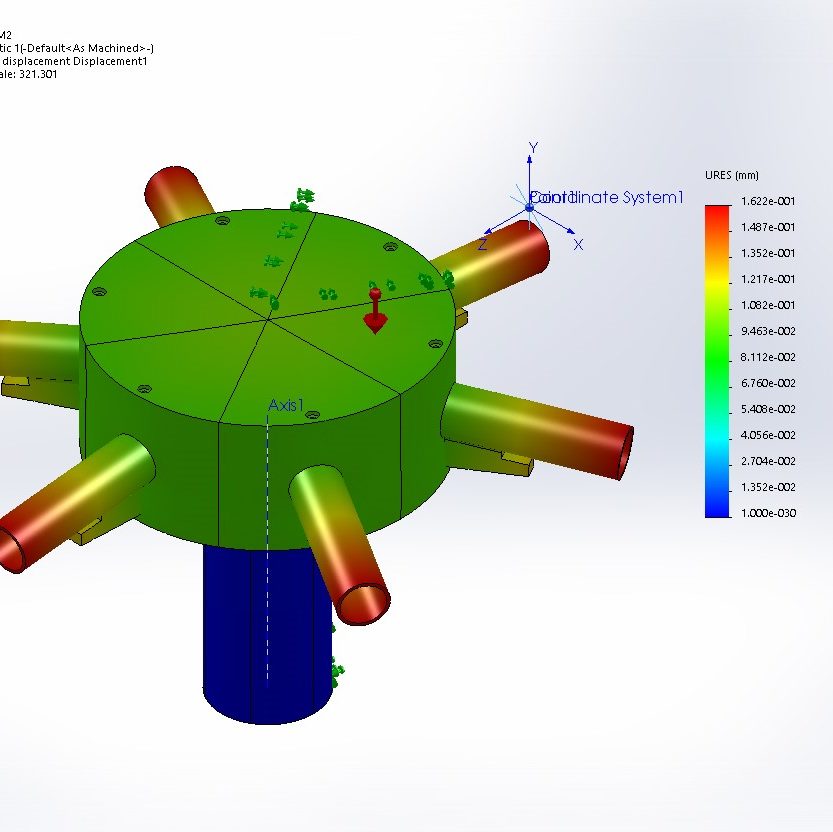

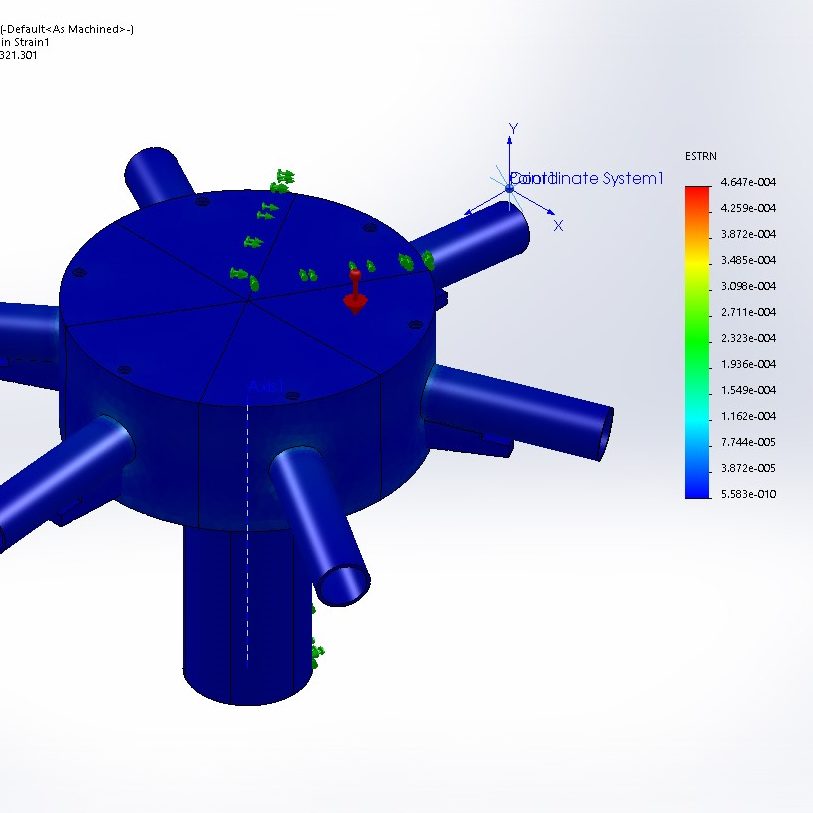

The use of software can now bypass the countless iterations of physical modelling. We can apply FEA techniques to your individual problem, to provide a simulation of how a component or product may perform under strain. Solid CAD models can be meshed and loaded to give insight into part longevity and effectiveness.

  • Individualised approach
  • Insight into longevity and effectiveness of parts

Structural analysis

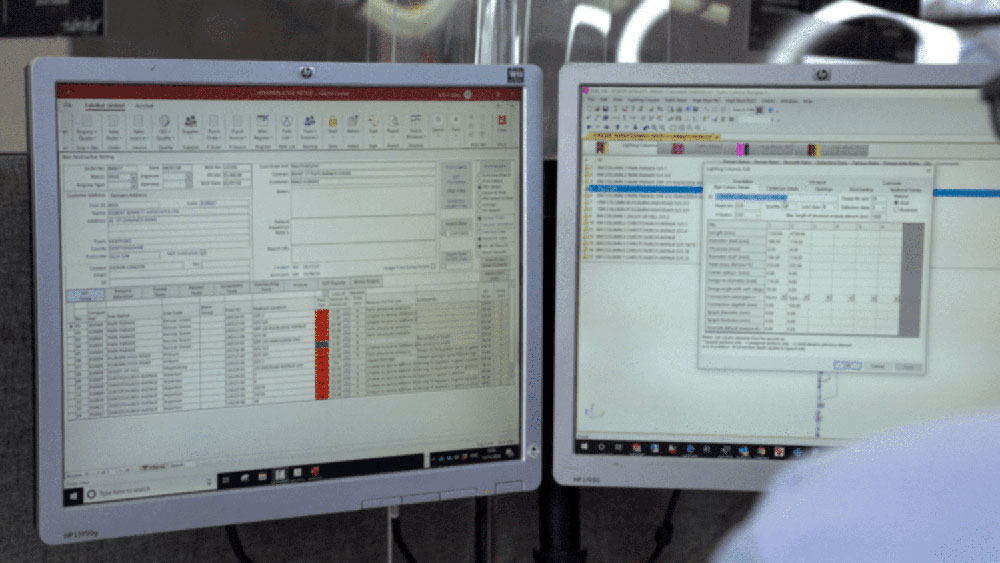

Our years of experience and vast expertise in the loading and deflection of lighting columns means we can produce results which you can trust. Data collected first hand from onsite visits can be fed into our complex structural analysis software, where we are able to produce EN40 design checks on the columns. Whether you’re looking to add new elements to an existing project, or simply review your existing assets, Fabrikat can give you confidence that your columns are loaded safely.

  • Analysis of current column loading.
  • Analysis of the effect of additional attachments.
  • Advice on specification changes to bring the column within safe loading.

Non-destructive testing

With many lighting columns in the UK coming to the end of their predicted lifespans, it has never been more important to have a sound knowledge of your existing assets. We offer a mini-test or a full test, both of which will give you valuable insight into the conditions of your assets.

The mini-test offers the following;

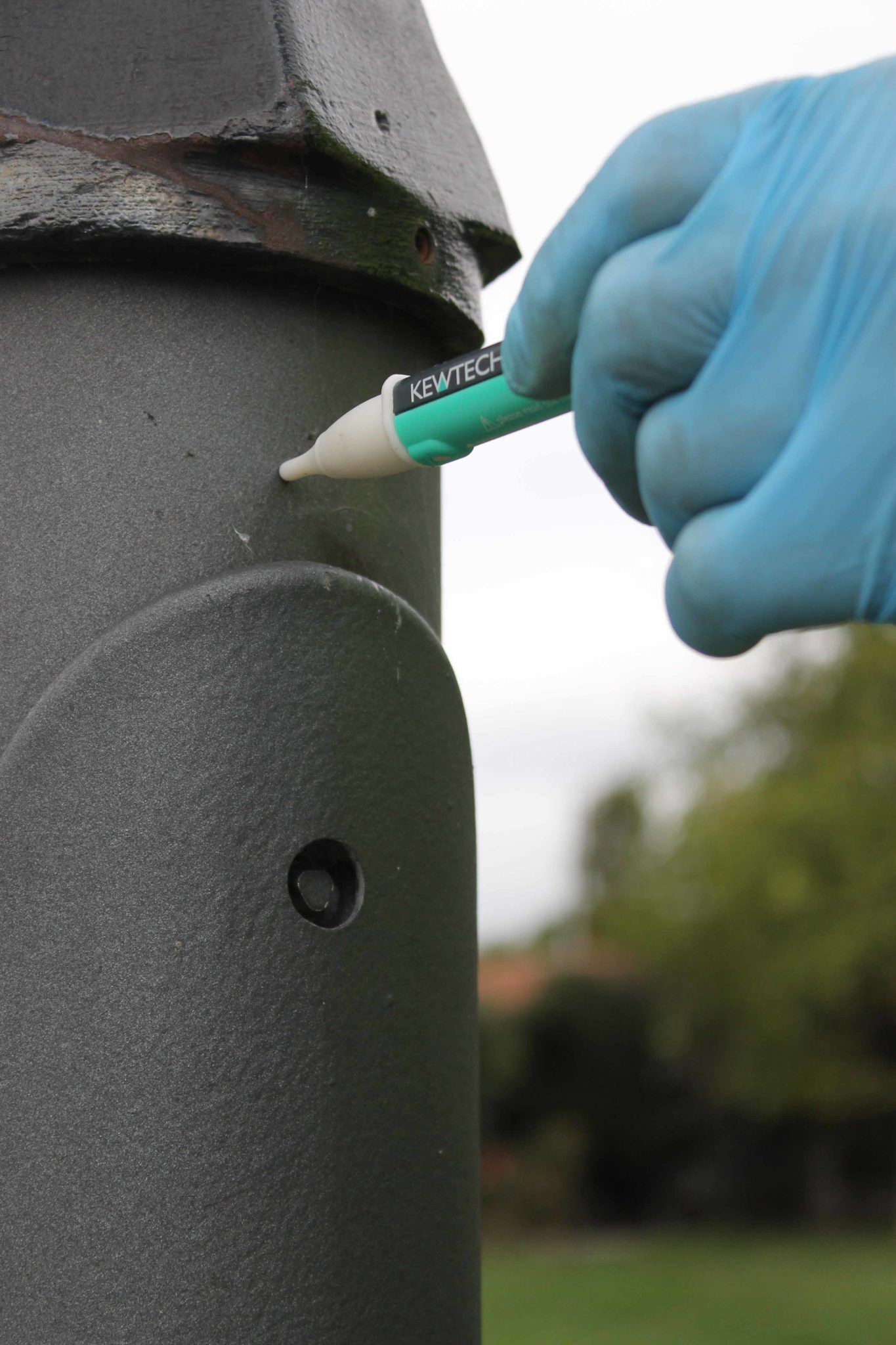

  • Visual inspection, which is to be carried out internally and externally, where accessible. This is to check for any signs of corrosion, impact damage, holes, to see if the column is leaning and any other noticeable defects.
  • Column data and attributes, including; the material type of the column, is the column full of water at the base or is it well-drained? External influences and conditions, does the column have existing attachments? Is there any protective treatment present?
  • A full suite of photographs, including endoscope inspection internally when required.
  • Coating thickness.
The full test offers all of the above and the following;

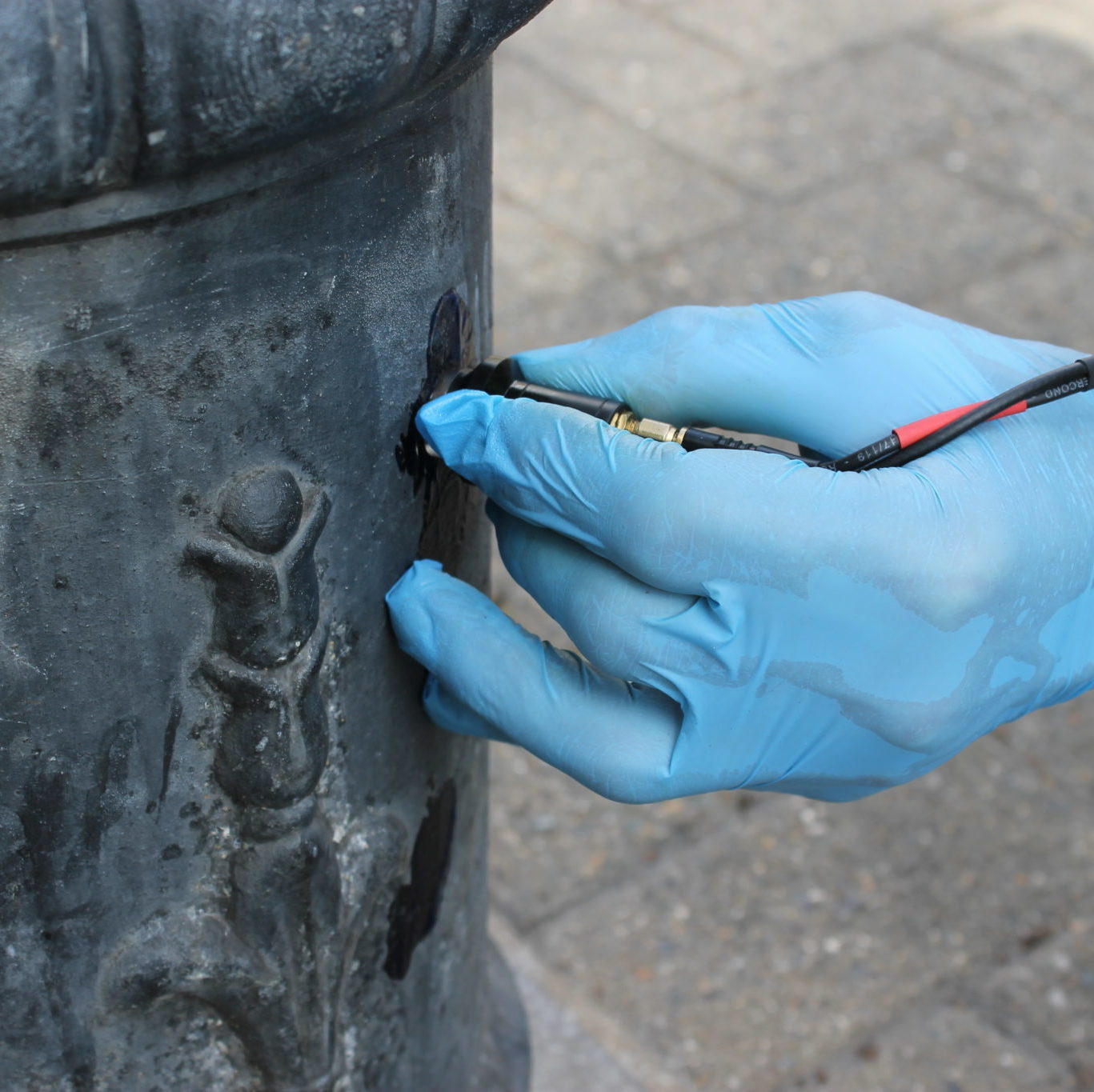

  • Ultrasonic testing of thickness, in accordance with GN22.

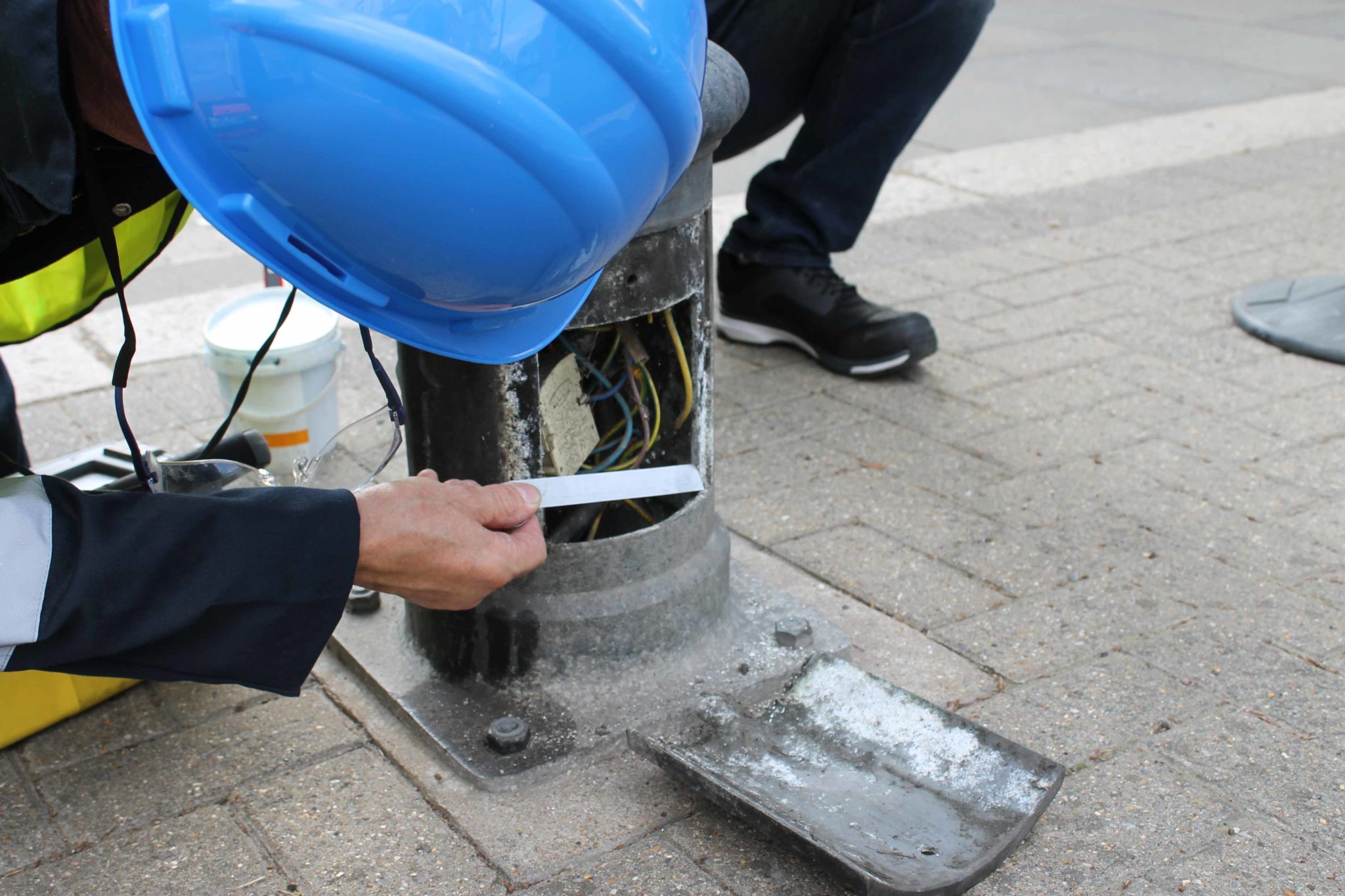

  • Column measurements – door, shaft and base measurements which are then used during the reverse engineering stage.

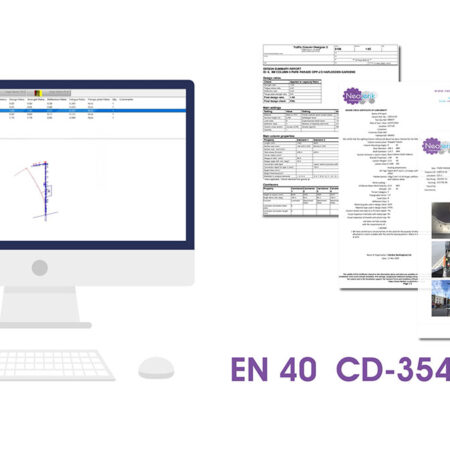

  • Reverse engineering using design software, checking the column and any attachments in accordance with EN40
Testing can be adapted to suit your specific requirements.
  • Ultrasonic Sectional Thickness Analysis on Steel and Aluminium Columns.
  • GN22 Compliant.
  • HERS, HEA and G39 Accredited.
